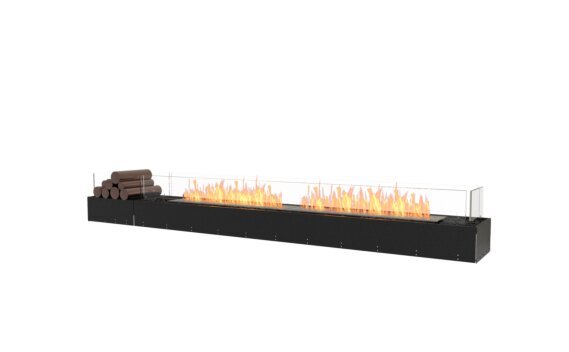

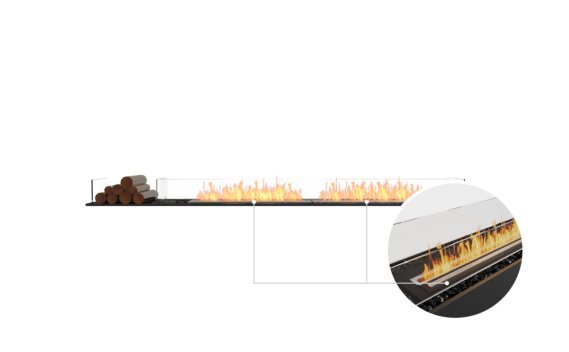

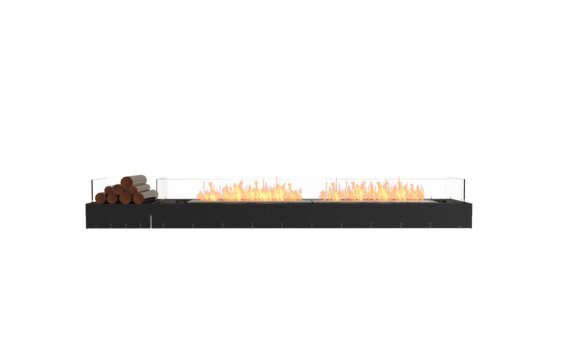

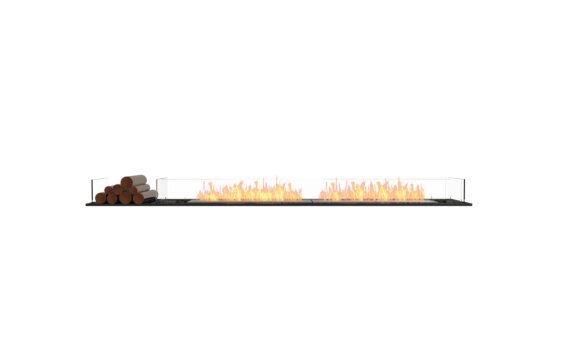

Flex 104BN.BX1 Bench Fireplace Insert

Create stunning custom indoor and outdoor fireplaces.

Designed as a room divider or stunning centrepiece with all open sides, the mesmerising flame can be viewed from the top, front, back, left and right sides. With the Flex Bench fireplace insert, the entire viewing area is dedicated to the flame, creating a harmonious blend of the traditional fire pit and contemporary fire design.

With an EcoSmart Flex 104BX.BX1, you have design freedom with the choice of a Decorative Box on the left or right-hand side. Both designs are fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL900 burners. With an overall heating capacity of 120m2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.

Each burner holds 9L of fuel, and can deliver a stunning flame for up to 13 hours.

Product Configuration

Select Fuel Type*

Ethanol Ethanol Burner
Ethanol  - Studio Image by MAD Design Group

Select Burner Colour*

Stainless Steel
Stainless Steel  - Studio Image by MAD Design Group
Black
Black  - Studio Image by MAD Design Group

Included Accessories

  • Fire Lighter
  • Lighting Rod
  • Jerry Can 5L
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal

Key Features

Multi room

With all open sides, the firebox mesmerising flame can be viewed from the top, front, back, left and right sides.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Self contained

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls.

Zero clearance

The zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Wind screen

Includes a translucent, toughened glass fire screen that provides an added layer of safety, peace of mind and comfort.

Clean burning

The fireplace inserts are fuelled by eco-friendly clean-burning e-NRG bioethanol, a renewable energy that emits no soot or smoke.

Technical Specifications

Construction

  • Weight 82.50kg [182lb]
  • Model Dimensions mm [in] W 2850mm [112.2in] D 354mm [13.9in] H 347mm [13.7in]
  • Viewing Area mm [in] W 2645mm [104.1in] D 340mm [13.4in]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Fuel Efficiency

Volume Capacity
9 L
2.4 Gal
Heats on Average
60m2
646ft2
Minimal Room
110m3
3885ft3
Thermal Output
15000 BTU/h
4.4 kW 16 MJ/h
Burn Time
8-13h
9 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

What are some key benefits – compared to other heating options?

When you choose ethanol as your fuel source over gas or wood, you are totally simplifying your installation requirements and costs. There's no flue or chimney required when burning ethanol, which means that you have the ultimate in design flexibility to achieve an open fire in so many more areas of your home - both indoors and out.

Are ethanol fireplace inserts difficult to install?

Unlike gas fireplaces or traditional wood burning fireplaces, our ethanol fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors. They are simply mounted into the constructed main wall framework with the appropriate opening size for the fireplace insert selected. EcoSmart Fire’s ethanol fireplace inserts are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact us.

How long does it take to assemble?

There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you!

The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth.

Is Bioethanol easily obtainable?

Yes, you can have fuel delivered to public and private premises in many countries.

Are EcoSmart Fires easy to install?

EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.

How to install a TV or AV equipment above an ethanol fireplace?

This design can be achieved as long as the TV is protected. You have 3 possible solutions:

Solution 1: The TV needs a non-combustible mantel/ledge to act as a heat shield

Solution 2: The TV needs to be recessed in a niche

Solution 3: The TV needs to sit back off the level of the flame

How to position your TV

Can EcoSmart Fires be installed everywhere?

Almost everywhere! EcoSmart Fires cannot be installed into small rooms that are less than our minimum room size which is burner specific. For all other installations, you must comply with our compulsory clearances and installation instructions. Approval from building authorities may be required prior to installation in your area. Please make sure you contact appropriate parties before installing your EcoSmart Fire.

Why use bioethanol?

Bioethanol, a renewable energy, is the cleanest and most efficient fuel on the market, which means there are no emissions and no soot or ash to clean up.

You May Also Like

Bench

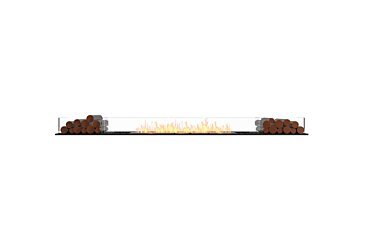

Flex 104BN.BX2 Bench - Studio Image by EcoSmart Fire
Flex 104BN.BX2 Bench - In-Situ Image by EcoSmart Fire
Flex 104BN.BX2 Bench Fireplace Insert
EcoSmart Fire The entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.
Flex 122BN Bench - Studio Image by EcoSmart Fire
Flex 122BN Bench - In-Situ Image by EcoSmart Fire
Flex 122BN Bench Fireplace Insert
EcoSmart Fire The entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.

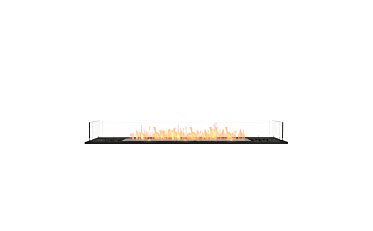

Flex 68BN Bench - Studio Image by EcoSmart Fire
Flex 68BN Bench - In-Situ Image by EcoSmart Fire
Flex 68BN Bench Fireplace Insert
EcoSmart Fire The entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.
Flex 32BN Bench - Studio Image by EcoSmart Fire
Flex 32BN Bench - In-Situ Image by EcoSmart Fire
Flex 32BN Bench Fireplace Insert
EcoSmart Fire The entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.
Flex 122BN.BX2 Bench - Studio Image by EcoSmart Fire
Flex 122BN.BX2 Bench - In-Situ Image by EcoSmart Fire
Flex 122BN.BX2 Bench Fireplace Insert
EcoSmart Fire The entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.
Flex 68BN.BX2 Bench - Studio Image by EcoSmart Fire
Flex 68BN.BX2 Bench - In-Situ Image by EcoSmart Fire
Flex 68BN.BX2 Bench Fireplace Insert
EcoSmart Fire The entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.

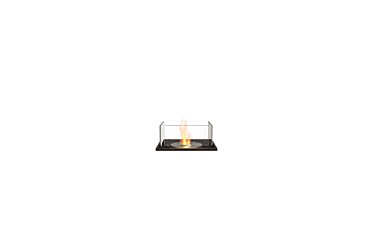

Flex 18BN Bench - Studio Image by EcoSmart Fire
