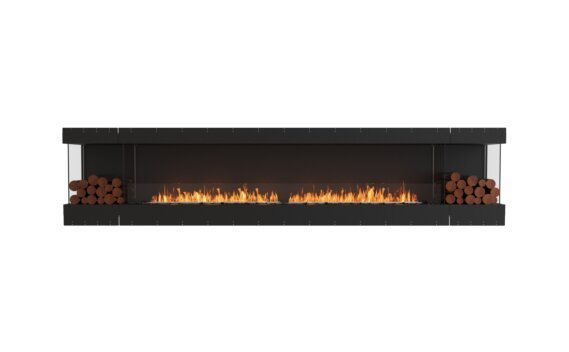

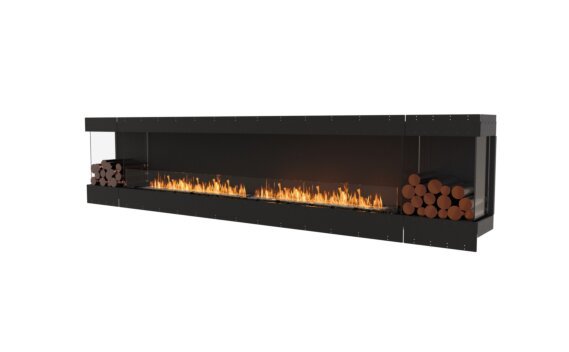

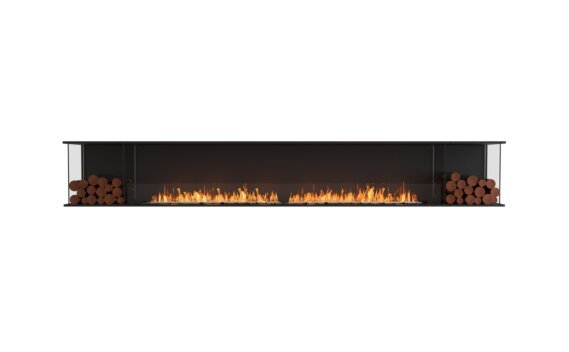

Flex 140BY.BX2 Bay Fireplace Insert

Enjoy an alluring flame from any angle you look at it.

The Bay Fireplace Insert is designed for single room installation and features three open sides that enable the hypnotic flame to be viewed from the front and both left and right sides, providing an alluring focal point from multiple vantage points.

The Flex Bay fireboxes are ideal for commercial spaces like restaurants, bars and cafes, and residential settings where a stunning centrepiece is needed.

The Flex 140BY.BX2 includes a design that features Decorative Boxes on either side of the firebox. This 2 Box-design boasts an attractive visual symmetry while the glass panels that divide the Decorative Boxes and the Firebox create an uninterrupted, streamlined look.

One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL1200 Burners. With an overall heating capacity of 130m2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.

Each burner holds 10L of fuel, and can deliver a stunning flame for up to 14 hours.

Product Configuration

Select Fuel Type*

Ethanol Ethanol Burner
Ethanol  - Studio Image by MAD Design Group

Select Burner Colour*

Stainless Steel
Stainless Steel  - Studio Image by MAD Design Group
Black
Black  - Studio Image by MAD Design Group

Included Accessories

  • Jerry Can 5L
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal
  • Lighting Rod
  • Fire Lighter

Key Features

Application

Indoor or outdoor single room application. With three open sides, view the flame from multiple vantage points.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative side box

Includes two decorative side boxes to fill with your chosen noncombustible accessory.

Optional log sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind screen

Included integrated windscreen sits flush behind frame.

Technical Specifications

Construction

  • Weight 200kg [442lb]
  • Model Dimensions mm [in] W 3653mm [144in] D 365mm [14.4in] H 807mm [31.8in]
  • Viewing Area mm [in] W 3560mm [140in] D 340mm [13.4in] H 502mm [19.8in]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Accessories

Includes everything you need to easily operate and protect your investment for many years to come.

Fuel Efficiency

Volume Capacity
10 L
2.6 Gal
Heats on Average
65m2
700ft2
Minimal Room
115m3
4061ft3
Thermal Output
15290 BTU/h
4.5 kW 17 MJ/h
Burn Time
9-14h
10 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

What are some key benefits – compared to other heating options?

When you choose ethanol as your fuel source over gas or wood, you are totally simplifying your installation requirements and costs. There's no flue or chimney required when burning ethanol, which means that you have the ultimate in design flexibility to achieve an open fire in so many more areas of your home - both indoors and out.

Do ethanol fireplaces smell?

All heating appliances have their own smell be it gas, wood or electric - ethanol fireplaces are no different. e-NRG ethanol fuel is made of fermented plants like sugarcane or corn and is essentially a liquid alcohol. To safely make “de-natured” and unfit for consumption, substances have been added. The burning of these substances may cause a slight smell upon initial lighting and when the flame is extinguished – similar to when you blow out a candle. e-NRG ethanol fuel is the only fuel recommended for your EcoSmart Fire ethanol fireplace. e-NRG ethanol fuel has the lowest odor and longest burn time on the market. The nice thing about using ethanol is that it’s not dry like gas or smokey like wood.

Is their heat output similar to a gas heater?

Burning bioethanol is similar to gas, but the room doesn't dry out like it does with gas - a more gentle, softer heat is created. Heat-wise, it depends on the models being compared. Some of our bioethanol burners output 15,000 BTU and can heat up to 60sqm of living space. Bioethanol is not, however, on an adjustable thermostat. Some may be turned up and down, but you can't control the room temperature in the same way as you do with gas on mains

Are EcoSmart Fires easy to install?

EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.

How do I fill my ethanol fireplace?

With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy.

Step 1: Remove the bottle nozzle cap and carefully insert into the filling point

Step 2: Push and hold the green button. The nozzle will automatically stop filling once the reservoir is full.

Step 3: Replace the nozzle cap.

You can view a step-by-step filling video.

How does an ethanol fireplace work?

EcoSmart Fire’s ethanol fireplaces are self-contained, burning bioethanol fuel that is housed within the stainless steel container. A flame regulator controls and stabilizes the flame. With a designated filling area, and easy shut off mechanism, you can ignite the flame and turn it off in a matter of seconds. View this quick demonstration video to help illustrate the process.

Do I need to service my ethanol fireplace in any way?

Yes, normal maintenance and care is very important! Instructions are included in the Installation, Operating and Maintenance Manual supplied with your EcoSmart Fire product.

What is a bioethanol fireplace?

A Bioethanol fireplace is an open fireplace that is fueled by bioethanol. A real flame is produced by the lighting of bioethanol, with a by-product being heat in the process. It is a fireplace that needs no flue for exhausting emissions, no utilities such as electricity or gas connection, and it uses a sustainable fuel source.
