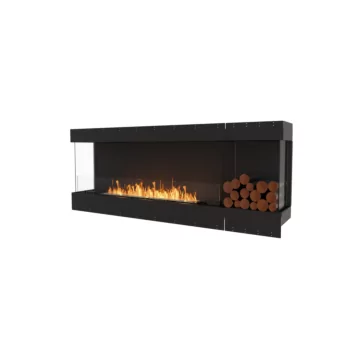

Flex 86BY.BXR Bay Fireplace Insert

Enjoy an alluring flame from any angle you look at it.

The Bay Fireplace Insert is designed for single room installation and features three open sides that enable the hypnotic flame to be viewed from the front and both left and right sides, providing an alluring focal point from multiple vantage points.

The Flex Bay fireboxes are ideal for commercial spaces like restaurants, bars and cafes, and residential settings where a stunning centrepiece is needed.

The Flex 86BY.BXR comes with a Decorative Box on the right-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

The longest of the XL Burner series, the XL1200 delivers a stunning linear flame. With a 10L capacity, this elongated burner can heat up to 65m2 and provides the ideal bioethanol fire for commercial and hospitality spaces such as open plan restaurants and bars.

Each burner holds 10L of fuel, and can deliver a stunning flame for up to 14 hours.

Product Configuration

Select Fuel Type*

Ethanol Ethanol Burner
Ethanol  - Studio Image by MAD Design Group

Select Burner Colour*

Stainless Steel
Stainless Steel  - Studio Image by MAD Design Group
Black
Black  - Studio Image by MAD Design Group

Included Accessories

  • Jerry Can 5L
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal
  • Lighting Rod
  • Fire Lighter

Inspiration

Key Features

Application

Indoor or outdoor single room application. With three open sides, view the flame from multiple vantage points.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative side box

Includes one decorative side box to fill with your chosen noncombustible accessory.

Optional log sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind screen

Included integrated windscreen sits flush behind frame.

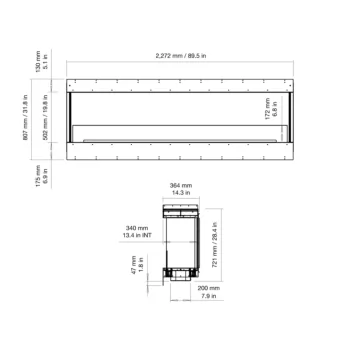

Technical Specifications

Construction

  • Weight 126kg [278lb]
  • Model Dimensions mm [in] W 2273mm [89.5in] D 365mm [14.4in] H 807mm [31.8in]
  • Viewing Area mm [in] W 2185mm [86in] D 340mm [13.4in] H 502mm [19.8in]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Accessories

Includes everything you need to easily operate and protect your investment for many years to come.

Fuel Efficiency

Volume Capacity
10 L
2.6 Gal
Heats on Average
65m2
700ft2
Minimal Room
115m3
4061ft3
Thermal Output
15290 BTU/h
4.5 kW 17 MJ/h
Burn Time
9-14h
10 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

Do ethanol fireplaces smell?

All heating appliances have their own smell be it gas, wood or electric - ethanol fireplaces are no different. e-NRG ethanol fuel is made of fermented plants like sugarcane or corn and is essentially a liquid alcohol. To safely make “de-natured” and unfit for consumption, substances have been added. The burning of these substances may cause a slight smell upon initial lighting and when the flame is extinguished – similar to when you blow out a candle. e-NRG ethanol fuel is the only fuel recommended for your EcoSmart Fire ethanol fireplace. e-NRG ethanol fuel has the lowest odor and longest burn time on the market. The nice thing about using ethanol is that it’s not dry like gas or smokey like wood.

What are some key benefits – compared to other heating options?

When you choose ethanol as your fuel source over gas or wood, you are totally simplifying your installation requirements and costs. There's no flue or chimney required when burning ethanol, which means that you have the ultimate in design flexibility to achieve an open fire in so many more areas of your home - both indoors and out.

Is Bioethanol easily obtainable?

Yes, you can have fuel delivered to public and private premises in many countries.

What is a bioethanol fireplace?

A Bioethanol fireplace is an open fireplace that is fueled by bioethanol. A real flame is produced by the lighting of bioethanol, with a by-product being heat in the process. It is a fireplace that needs no flue for exhausting emissions, no utilities such as electricity or gas connection, and it uses a sustainable fuel source.

Do bioethanol fireplaces produce heat?

Yes, although it does depend upon the size of the fireplace and also the size of the room itself. But a fire of an appropriate size can produce a good level of heat when considered properly in terms of its actual output and how it is positioned in the space. Bioethanol fires are a secondary source of heat that deliver a myriad of lifestyle benefits that can’t be achieved from primary heat sources such as radiators or reverse cycle air conditioning.

How do I fill my ethanol fireplace?

With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy.

Step 1: Remove the bottle nozzle cap and carefully insert into the filling point

Step 2: Push and hold the green button. The nozzle will automatically stop filling once the reservoir is full.

Step 3: Replace the nozzle cap.

You can view a step-by-step filling video.

Can I extinguish my ethanol fireplace before the fuel has burnt?

Yes, you can turn your EcoSmart Fire ethanol burner off at any given time, even if there is ethanol still left in the burner. It is recommended however, that you leave it to burn until it completely runs out. The shut off mechanism is there for security and safety for those times when you need to leave the house, as it is not safe to leave a fire unattended. You need to wait until your appliance cools to room temperature (60 minutes) before re-igniting, this is because hot vapours are a hazard and may cause a strong, initial ignition if the ethanol has not cooled long enough. This is also to ensure that the flame has been totally extinguished and that the appliance is safe to refuel if the amount of fuel in the burner at that time is insufficient for your next ignition / use.

Where is the best place to install an ethanol fireplace?

Our ethanol fireplaces can be installed virtually anywhere - in walls, cabinets, high rise buildings, commercial / residential / hospitality spaces, indoors and outdoors. Because EcoSmart Fire’s ethanol fireplaces are ventless, they require no gas line, no electricity, and no chimney for a hassle free and cost effective installation. Our ethanol fireplaces have been designed and tested with safety as our top priority. We have outlined requirements for each ethanol burner, ethanol fireplace insert, and ethanol freestanding fireplace in our collection. These guidelines include minimum room size requirements and clearance recommendations for flammable materials and movable objects. Please refer to our manual for more information.
