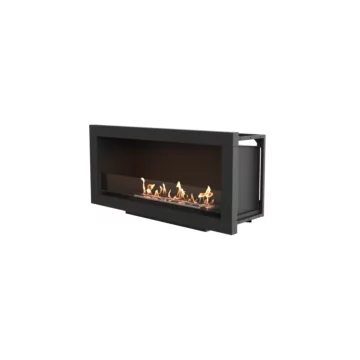

Frame 1000SS Fireplace Insert
Commanding presence and spectacular flame display
Make a commanding statement with linear flames that captivate attention in living rooms, lobbies, and grand entertaining spaces.
Product Configuration
Key Features
Premium Materials
Constructed from mild steel with zinc-sealed, high-temperature powder-coat, toughened low-iron glass, and Grade 304 stainless steel burners, Frame Series is engineered for lasting performance and sophisticated style.
Zero Clearance
Self-contained, zero clearance construction allows your Frame fireplace to be installed into wood or metal studs, providing installation freedom and flexibility for builders, architects, interior designers, landscapers and homeowners
No Flue, No Chimney, No Vent
Powered by clean-burning e-NRG bioethanol, these fireplaces produce no smoke, soot, or ash. Enjoy a warm, inviting flame that’s as easy to light as a candle and safe for indoor air quality in any room.
Glass Fire Screen
The toughened glass fire screen stabilises the flame in windy conditions. The Integrated windscreen sits flush behind the frame.
Space-Conscious Installation
Requires minimal wall cavity preparation, making it perfect for retrofit projects in existing homes where structural modifications must be kept to an absolute minimum.
Single Room Application
Single Sided fireplaces feature one open side - view the flame from the front.
Complete Design Freedom
Place in virtually any room with complete customisation of finishing material. Whether integrating into marble, timber, concrete, or custom millwork, Frame Series adapts beautifully to your aesthetic vision and architectural requirements.
Significant Savings
With no flue requirement for gas lines, electricity, or venting, installation costs are dramatically reduced. Enjoy a streamlined process that eliminates multiple trades and complex approvals while maintaining premium quality and performance.
Forefront of Fireplace Technology
Backed by 20+ years of research and development, and third-party certification, each model in the Frame series features world-class safety and fuel ignition technologies.
Global Compliance
These models comply with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant.
Technical Specifications
Construction
- Weight 49.70kg [110lb]

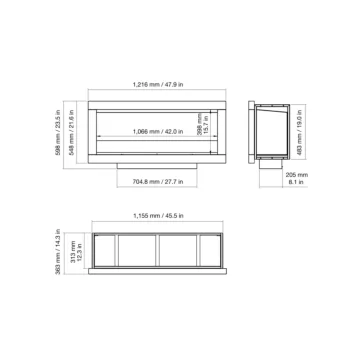

- Model Dimensions mm [in] W 1216mm [47.9in] D 363mm [14.3in] H 598mm [23.5in]
- Viewing Area mm [in] W 1066mm [42in] H 398mm [15.7in]
- Application Indoor & Outdoor
- Materials Mild Steel (Zinc Sealed) Hi-temp Powder Coat Surround; Toughened Glass Fire Screen; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner.
Fuel Efficiency
Volume Capacity
Heats on Average
Minimal Room
Thermal Output
Burn Time
