Linear 130 Fire Pit Kit

Write a Review

Elongated aesthetics Fire Pit Kit.

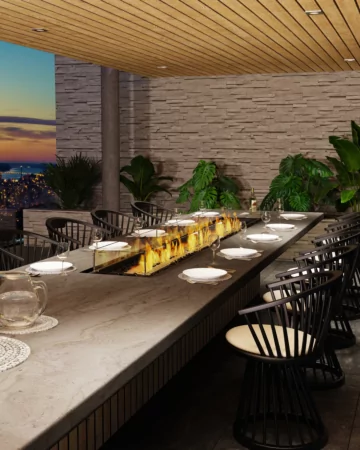

The Linear 130’s three XL900 burners provide the longest flame in the ethanol Fire Pit Kit Series, creating a stunning statement fireplace indoors or out – in spacious residential or commercial premises as a divider, definer, or design element integrated within a benchtop or dining table.

Product Configuration

Select Application*

Outdoor
Indoor
*Your chosen application is the only application the model can be used in due to the modified configuration of the model.

Select Fuel Type*

Ethanol Ethanol Burner
Ethanol  - Studio Image by MAD Design Group

Select Model Finish*

Black
Black  - Studio Image by MAD Design Group

Select Burner Colour*

Stainless Steel
Stainless Steel  - Studio Image by MAD Design Group
Black
Black  - Studio Image by MAD Design Group

Included Accessories

  • Fire Lighter
  • Lighting Rod
  • Jerry Can 5L
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal
  • L1080 Fire Screen
  • XL900 Indoor Safety Tray

Inspiration

Key Features

Design convenience

A seamless elegant ethanol fire pit encasing three flames designed specifically to suit long settings such as dining tables and room dividers.

High performing and eco-friendly

Three flames powered by three award-winning XL900 ethanol burners heat over 180 square metres on average.

Design flexibility

Created for easy integration with non-combustible surfaces including stone countertops, concrete surfaces, brick and tiled tops. Our Fire Pit Kits are ideal for larger architectural spaces.

Self-contained

EcoSmart Fire Pit Kits are all completely self-contained, which means they’re easier to install than gas or wood-burning fire pits.

No preparation and no cleaning up

The environmentally-friendly bioethanol fuel used for the Fire Pit Kits doesn’t produce any soot or ash that needs to be cleaned out after each use.

Enduring choice

Durable materials used to make the Fire Pit Kits ensure they’re built to last and suitable for installation indoors and out.

Technical Specifications

Construction

  • Weight 106kg [233lb]

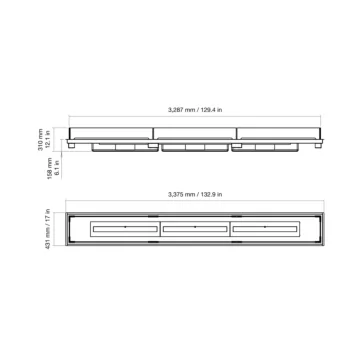

  • Model Dimensions mm [in] L 3375mm [133in] W 431mm [17in] H 308mm [12.1in]
  • Application Indoor & Outdoor
  • Materials Mild Steel & Toughened Glass
  • Colours
Comes with Black Glass Charcoal as decorative media.

Accessories

Includes everything you need to easily operate and protect your investment for many years to come.

Fuel Efficiency

Volume Capacity
9 L
2.4 Gal
Heats on Average
60m2
646ft2
Minimal Room
110m3
3885ft3
Thermal Output
15000 BTU/h
4.4 kW 16 MJ/h
Burn Time
8-13h
9 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

Do ethanol fireplaces smell?

All heating appliances have their own smell be it gas, wood or electric - ethanol fireplaces are no different. e-NRG ethanol fuel is made of fermented plants like sugarcane or corn and is essentially a liquid alcohol. To safely make “de-natured” and unfit for consumption, substances have been added. The burning of these substances may cause a slight smell upon initial lighting and when the flame is extinguished – similar to when you blow out a candle. e-NRG ethanol fuel is the only fuel recommended for your EcoSmart Fire ethanol fireplace. e-NRG ethanol fuel has the lowest odor and longest burn time on the market. The nice thing about using ethanol is that it’s not dry like gas or smokey like wood.

How long does it take to assemble?

There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you!

The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth.

Do bioethanol fireplaces produce heat?

Yes, although it does depend upon the size of the fireplace and also the size of the room itself. But a fire of an appropriate size can produce a good level of heat when considered properly in terms of its actual output and how it is positioned in the space. Bioethanol fires are a secondary source of heat that deliver a myriad of lifestyle benefits that can’t be achieved from primary heat sources such as radiators or reverse cycle air conditioning.

Can I extinguish my ethanol fireplace before the fuel has burnt?

Yes, you can turn your EcoSmart Fire ethanol burner off at any given time, even if there is ethanol still left in the burner. It is recommended however, that you leave it to burn until it completely runs out. The shut off mechanism is there for security and safety for those times when you need to leave the house, as it is not safe to leave a fire unattended. You need to wait until your appliance cools to room temperature (60 minutes) before re-igniting, this is because hot vapours are a hazard and may cause a strong, initial ignition if the ethanol has not cooled long enough. This is also to ensure that the flame has been totally extinguished and that the appliance is safe to refuel if the amount of fuel in the burner at that time is insufficient for your next ignition / use.

How much does it cost to maintain an ethanol fireplace?

EcoSmart Fire’s ethanol fireplaces require little maintenance. It is important to keep the lid closed when not in use to keep debris out of the ethanol burner that can cause corrosion and damages. The 304 stainless steel tank is built to last a lifetime if proper cleaning procedures are done when needed.

Where is the best place to install an ethanol fireplace?

Our ethanol fireplaces can be installed virtually anywhere - in walls, cabinets, high rise buildings, commercial / residential / hospitality spaces, indoors and outdoors. Because EcoSmart Fire’s ethanol fireplaces are ventless, they require no gas line, no electricity, and no chimney for a hassle free and cost effective installation. Our ethanol fireplaces have been designed and tested with safety as our top priority. We have outlined requirements for each ethanol burner, ethanol fireplace insert, and ethanol freestanding fireplace in our collection. These guidelines include minimum room size requirements and clearance recommendations for flammable materials and movable objects. Please refer to our manual for more information.

Do I need to service my ethanol fireplace in any way?

Yes, normal maintenance and care is very important! Instructions are included in the Installation, Operating and Maintenance Manual supplied with your EcoSmart Fire product.

What is bioethanol fuel?

Bioethanol (also known as methylated spirits or simply ethanol) is a form of renewable energy. It’s a clear, colourless liquid that’s commonly made from fermenting the sugar and starch components of plant by-products like sugarcane and grain crops.
