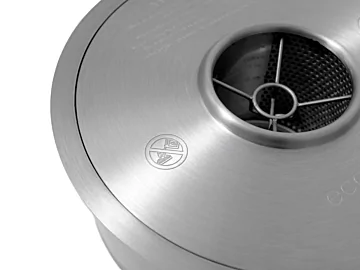

AB3 Ethanol Burner

Small but effective round bioethanol burner.

The smallest of EcoSmart’s round ethanol burners, but no less effective. It’s the core of many freestanding, portable designer indoor and outdoor fires, but also provides the versatility to create your own – and the creative designs around the world are testament to this.

Product Configuration

Select Model Finish*

How to choose the right finish?

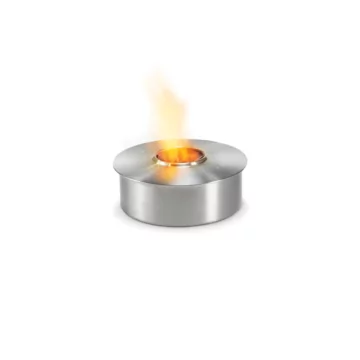

Stainless Steel
Stainless Steel  - Studio Image by MAD Design Group

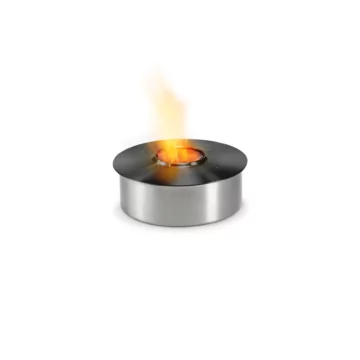

Black
Black  - Studio Image by MAD Design Group

Select Top Tray*

AB3 Top Tray
AB3 Top Tray Black

Included Accessories

  • AB3 Top Tray
  • Jerry Can Spout Extension
  • Bottle Adaptor
  • Jerry Can 5L
  • Lighting Rod
  • Fire Lighter

Order Summary

$845.00 Taxes may apply* Tax Information
Free Shipping * Shipping Information
Unspecified Unspecified Ship Times

Key Features

Minimal clearance

AB3’s minimal clearance requirement gives you the freedom to create the installation you’ve always envisioned.

Enduring flame

AB3’s 2.5L capacity gives up to 11 hours of burn time.

Environmentally-friendly

The AB3 is fuelled by eco-friendly, renewable energy – e-NRG bioethanol.

No Flue, no chimney, no connection

There’s no need for a chimney to vent harmful gases, as burning liquid e-NRG bioethanol does not produce any smoke. No utility connections required!

Quality and durability

Crafted from high quality, 304 grade stainless steel, designed to deliver robust performance time after time.

Stability assured

The AB3 is filled with steel wool to not only enhance the stability of the flame but to regulate its ethanol fuel efficiency.

Technical Specifications

Construction

  • Weight 3.7kg [8.2lb]

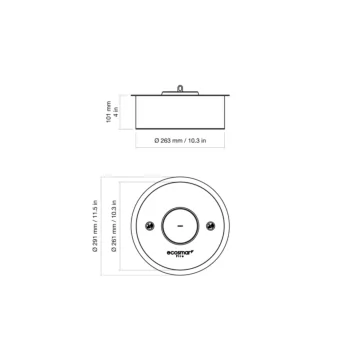

  • Model Dimensions mm [in] L 291mm [11.5in] W 291mm [11.5in] D 101mm [4in]
  • Application Indoor & Outdoor
  • Materials Stainless Steel Grade 304
  • Colours
Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align.

Fuel Efficiency

Volume Capacity
2.5 L
0.7 Gal
Heats on Average
20m2
215ft2
Minimal Room
40m3
1413ft3
Thermal Output
5800 BTU/h
1.7 kW 6.1 MJ/h
Burn Time
8 - 11h
2.5 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

What is a bioethanol fireplace?

A Bioethanol fireplace is an open fireplace that is fueled by bioethanol. A real flame is produced by the lighting of bioethanol, with a by-product being heat in the process. It is a fireplace that needs no flue for exhausting emissions, no utilities such as electricity or gas connection, and it uses a sustainable fuel source.

How do I fill my ethanol fireplace?

With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy.

Step 1: Remove the bottle nozzle cap and carefully insert into the filling point

Step 2: Push and hold the green button. The nozzle will automatically stop filling once the reservoir is full.

Step 3: Replace the nozzle cap.

You can view a step-by-step filling video.

Is Bioethanol easily obtainable?

Yes, you can have fuel delivered to public and private premises in many countries.

Can I extinguish my ethanol fireplace before the fuel has burnt?

Yes, you can turn your EcoSmart Fire ethanol burner off at any given time, even if there is ethanol still left in the burner. It is recommended however, that you leave it to burn until it completely runs out. The shut off mechanism is there for security and safety for those times when you need to leave the house, as it is not safe to leave a fire unattended. You need to wait until your appliance cools to room temperature (60 minutes) before re-igniting, this is because hot vapours are a hazard and may cause a strong, initial ignition if the ethanol has not cooled long enough. This is also to ensure that the flame has been totally extinguished and that the appliance is safe to refuel if the amount of fuel in the burner at that time is insufficient for your next ignition / use.

Do bioethanol fireplaces produce heat?

Yes, although it does depend upon the size of the fireplace and also the size of the room itself. But a fire of an appropriate size can produce a good level of heat when considered properly in terms of its actual output and how it is positioned in the space. Bioethanol fires are a secondary source of heat that deliver a myriad of lifestyle benefits that can’t be achieved from primary heat sources such as radiators or reverse cycle air conditioning.

Where is the best place to install an ethanol fireplace?

Our ethanol fireplaces can be installed virtually anywhere - in walls, cabinets, high rise buildings, commercial / residential / hospitality spaces, indoors and outdoors. Because EcoSmart Fire’s ethanol fireplaces are ventless, they require no gas line, no electricity, and no chimney for a hassle free and cost effective installation. Our ethanol fireplaces have been designed and tested with safety as our top priority. We have outlined requirements for each ethanol burner, ethanol fireplace insert, and ethanol freestanding fireplace in our collection. These guidelines include minimum room size requirements and clearance recommendations for flammable materials and movable objects. Please refer to our manual for more information.

How does an ethanol fireplace work?

EcoSmart Fire’s ethanol fireplaces are self-contained, burning bioethanol fuel that is housed within the stainless steel container. A flame regulator controls and stabilizes the flame. With a designated filling area, and easy shut off mechanism, you can ignite the flame and turn it off in a matter of seconds. View this quick demonstration video to help illustrate the process.

How long does it take to assemble?

There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you!

The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth.
