XL500 Ethanol Burner

4 reviews

XL500 is the smallest of our linear ethanol burners.

The baby of the XL Series, the XL500 may be compact in size, but this 5L ethanol burner effectively delivers a beautifully long, lasting flame. Like the other models within the XL Series, this fire can be easily integrated into a horizontal, tailor-made setting. Whether you just use the burner by itself or as part of a Flex firebox insert, you have an amazing design tool to achieve your vision.

Product Configuration

Select Model Finish*

How to choose the right finish?
Stainless Steel
Stainless Steel  - Studio Image by MAD Design Group

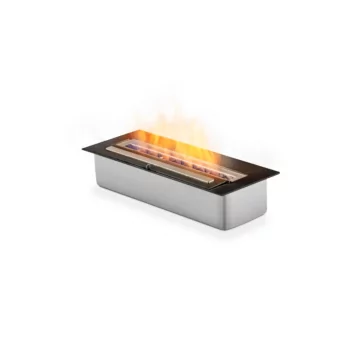

Black
Black  - Studio Image by MAD Design Group

Select Top Tray*

XL500 Top Tray
XL500 Top Tray Black

Included Accessories

  • XL500 Top Tray
  • XL Baffles
  • Bottle Adaptor
  • Jerry Can 5L
  • Lighting Rod
  • Fire Lighter

Order Summary

$2,895.00 Taxes may apply* Tax Information
Free Shipping Standard Delivery*
Zone 1
Shipping Information
Unspecified Unspecified Ship Times

Key Features

Design versatility

Easily integrated into bespoke settings – from specially-made cabinetry, media units, walls, floating timber to stone benches and pillars.

Myriad materials

Diverse range of materials can be used in your bespoke fire – think concrete and hard timber benches, marble recesses, stacked stone walls, stainless steel – even metal barrels cut in half!

Flame regulation

Purpose-designed baffle inserts allow you to regulate and further stabilise the flame.

No harmful by-products

e-NRG bioethanol produces a beautiful orange flame from start to finish without producing by-products such as smoke, soot or ash.

Award-winning

Awarded the 2009 Hearth & Home Vesta Award (USA).

Standalone or integrated

Easily installed as a standalone ethanol burner in tailored setting or in conjunction with a zero-clearance Flex Fireplace Insert.

Technical Specifications

Construction

  • Weight 9.1kg [20.06lb]

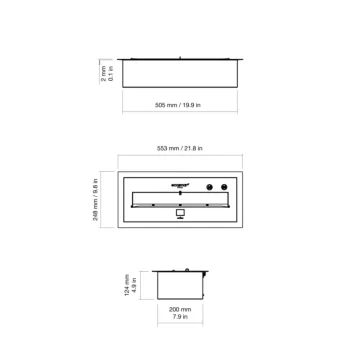

  • Model Dimensions mm [in] L 553 [21.8] W 248 [9.8] D 124 [4.9]
  • Application Indoor & Outdoor
  • Materials Stainless Steel Grade 304
  • Colours
Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align.

Fuel Efficiency

Volume Capacity
5 L
1.3 Gal
Heats on Average
40m2
431ft2
Minimal Room
80m3
2825ft3
Thermal Output
11430 BTU/h
3.4 kW 12 MJ/h
Burn Time
10 - 13 h
5 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

If I purchased from a retailer, can I contact MAD Design Group directly for warranty?

It is best to contact the retailer where you made your purchase. The retailer will help you resolve the issue or submit the warranty claim on your behalf.

Do bioethanol fireplaces produce heat?

Yes, although it does depend upon the size of the fireplace and also the size of the room itself. But a fire of an appropriate size can produce a good level of heat when considered properly in terms of its actual output and how it is positioned in the space. Bioethanol fires are a secondary source of heat that deliver a myriad of lifestyle benefits that can’t be achieved from primary heat sources such as radiators or reverse cycle air conditioning.

Can EcoSmart Fires be installed everywhere?

Almost everywhere! EcoSmart Fires cannot be installed into small rooms that are less than our minimum room size which is burner specific. For all other installations, you must comply with our compulsory clearances and installation instructions. Approval from building authorities may be required prior to installation in your area. Please make sure you contact appropriate parties before installing your EcoSmart Fire.

How do I clean my EcoSmart Fire ethanol burner?

Cleaning of the ethanol burner should be done only after you have used 50 litres of fuel or as soon as you notice a black residue forming around or on the burner. Before starting, make sure the burner is off, empty of ethanol, and at room temperature. Spray a multi-purpose cleaner on the surface of the burner and wipe with cloth, making sure to wipe in the direction of the grain. If material has fallen into the ethanol fireplace burner use a vacuum cleaner to remove debris through the burner opening. If your burner smells unusually strong after extensive use, remove the empty and room temperature burner from its surround and wash in hot, soapy water. Rinse thoroughly under running water and wait until the burner is completely dry before placing it back into its surround and reusing. View this video of the simple cleaning process here: https://youtu.be/VqHg9mXOc0U

Note: Stainless steel will rust or corrode over time if contamination or debris is not cleaned or removed immediately. When not in use, we recommend that you protect your ethanol fireplace from water damage or corrosion with a protective cover and the regular use of the burner lid included with your model.

Is the warranty the same length for both residential and commercial?

Yes, the warranty is 2 years from the date of purchase for both residential and commercial installations.

What are the benefits of using a bioethanol heater compared to heating your house with a reverse cycle air conditioner?

It’s important to understand the difference between “foundation” heating and occasional heating. Quite often these are two completely different yet complementary systems that work hand in hand. Reverse cycle air conditioning doesn't give you a beautiful flame and lifestyle benefits of an EcoSmart Fire. However, By combining reverse-cycle air conditioning and an EcoSmart Fire within your home you can have the ‘best of both worlds’ - effective heat and ambiance.

What is a bioethanol fireplace?

A Bioethanol fireplace is an open fireplace that is fueled by bioethanol. A real flame is produced by the lighting of bioethanol, with a by-product being heat in the process. It is a fireplace that needs no flue for exhausting emissions, no utilities such as electricity or gas connection, and it uses a sustainable fuel source.

What maintenance is required for ethanol fireplaces?

Clean your EcoSmart Fire unit after you have used 50 liters [13.20 Gal.] of fuel or as soon as you notice black deposits on or near the burner of the ethanol fireplace. Black marks can be removed from the stone, solid surfaces or stainless steel with a mild abrasive washing product such as JIF or similar. It is recommended to test a small area first to ensure the cleaning product chosen is appropriate and will not mark or damage the surface. Burners can be washed as required in hot soapy water (even in your dishwasher) from time to time and the internal mechanics won’t deteriorate like some other brands as all internal parts are stainless steel.
