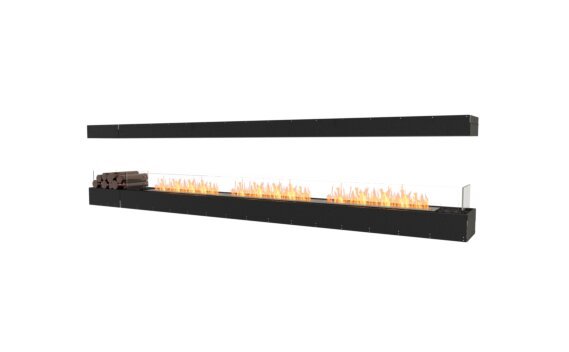

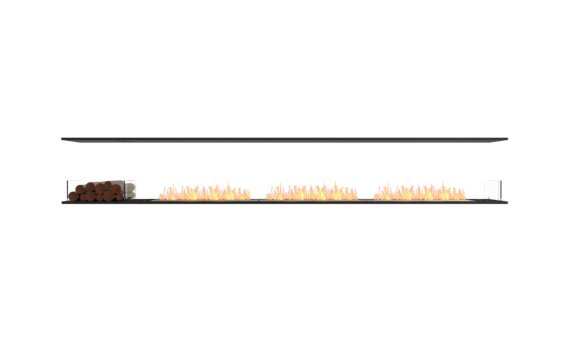

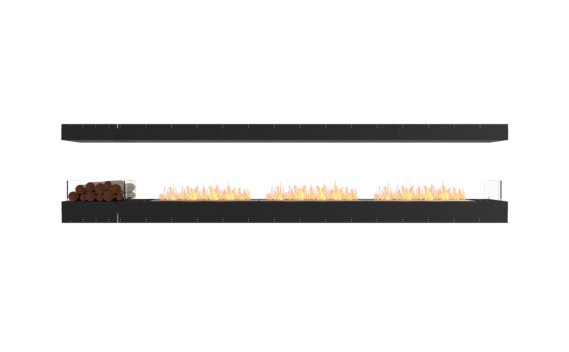

Flex 140IL.BX1 Island Fireplace Insert

Designed as a room divider with four open sides.

The zero-clearance Flex Island fireplace insert is designed as a room divider, with four open sides enabling the hypnotic flame to be viewed from the front, back, left and right sides. The UL Listed Flex Island models come with a base component that holds the burner and a top component that lines the bulkhead above.

With an EcoSmart Flex 140IL.BX1, you have design freedom with the choice of a Decorative Box on the left or right-hand side. Both designs are fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

One of the longest flames available in the Flex Series is created by using 3 of our ever-popular XL900 Burners. With an overall heating capacity of 180m2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.

Each burner holds 9L of fuel, and can deliver a stunning flame for up to 13 hours.

Product Configuration

Select Fuel Type*

Ethanol Ethanol Burner
Ethanol  - Studio Image by MAD Design Group

Select Burner Colour*

Stainless Steel
Stainless Steel  - Studio Image by MAD Design Group
Black
Black  - Studio Image by MAD Design Group

Included Accessories

  • Jerry Can 5L
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal
  • Lighting Rod
  • Fire Lighter

Key Features

Multi room

Indoor or outdoor multi room application. With four open sides, view the flame from multiple vantage points.

Base + bulkhead

Flex Island models come with a base component that holds the burner and a top component that lines the bulkhead above.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Self contained

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls.

Zero clearance

The zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Wind screen

Includes a translucent, toughened glass fire screen that provides an added layer of safety, peace of mind and comfort.

Clean burning

The fireplace inserts are fuelled by eco-friendly clean-burning e-NRG bioethanol, a renewable energy that emits no soot or smoke.

Technical Specifications

Construction

  • Weight 163kg [360lb]
  • Model Dimensions mm [in] W 3770mm [148in] D 354mm [13.9in] H 807mm [31.8in]
  • Viewing Area mm [in] W 3560mm [140in] D 340mm [13.4in] H 502mm [19.8in]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Accessories

Includes everything you need to easily operate and protect your investment for many years to come.

Fuel Efficiency

Volume Capacity
9 L
2.4 Gal
Heats on Average
60m2
646ft2
Minimal Room
110m3
3885ft3
Thermal Output
15000 BTU/h
4.4 kW 16 MJ/h
Burn Time
8-13h
9 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

Are EcoSmart Fires easy to install?

EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.

Is Bioethanol easily obtainable?

Yes, you can have fuel delivered to public and private premises in many countries.

Do bioethanol fireplaces produce heat?

Yes, although it does depend upon the size of the fireplace and also the size of the room itself. But a fire of an appropriate size can produce a good level of heat when considered properly in terms of its actual output and how it is positioned in the space. Bioethanol fires are a secondary source of heat that deliver a myriad of lifestyle benefits that can’t be achieved from primary heat sources such as radiators or reverse cycle air conditioning.

What maintenance is required for ethanol fireplaces?

Clean your EcoSmart Fire unit after you have used 50 liters [13.20 Gal.] of fuel or as soon as you notice black deposits on or near the burner of the ethanol fireplace. Black marks can be removed from the stone, solid surfaces or stainless steel with a mild abrasive washing product such as JIF or similar. It is recommended to test a small area first to ensure the cleaning product chosen is appropriate and will not mark or damage the surface. Burners can be washed as required in hot soapy water (even in your dishwasher) from time to time and the internal mechanics won’t deteriorate like some other brands as all internal parts are stainless steel.

Can EcoSmart Fires be installed everywhere?

Almost everywhere! EcoSmart Fires cannot be installed into small rooms that are less than our minimum room size which is burner specific. For all other installations, you must comply with our compulsory clearances and installation instructions. Approval from building authorities may be required prior to installation in your area. Please make sure you contact appropriate parties before installing your EcoSmart Fire.

How long does it take to assemble?

There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you!

The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth.

Where is the best place to install an ethanol fireplace?

Our ethanol fireplaces can be installed virtually anywhere - in walls, cabinets, high rise buildings, commercial / residential / hospitality spaces, indoors and outdoors. Because EcoSmart Fire’s ethanol fireplaces are ventless, they require no gas line, no electricity, and no chimney for a hassle free and cost effective installation. Our ethanol fireplaces have been designed and tested with safety as our top priority. We have outlined requirements for each ethanol burner, ethanol fireplace insert, and ethanol freestanding fireplace in our collection. These guidelines include minimum room size requirements and clearance recommendations for flammable materials and movable objects. Please refer to our manual for more information.

How to install a TV or AV equipment above an ethanol fireplace?

This design can be achieved as long as the TV is protected. You have 3 possible solutions:

Solution 1: The TV needs a non-combustible mantel/ledge to act as a heat shield

Solution 2: The TV needs to be recessed in a niche

Solution 3: The TV needs to sit back off the level of the flame

How to position your TV
