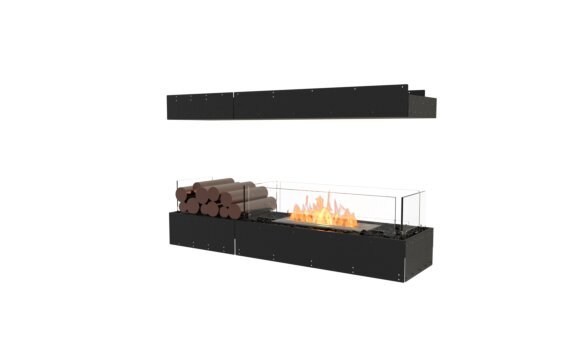

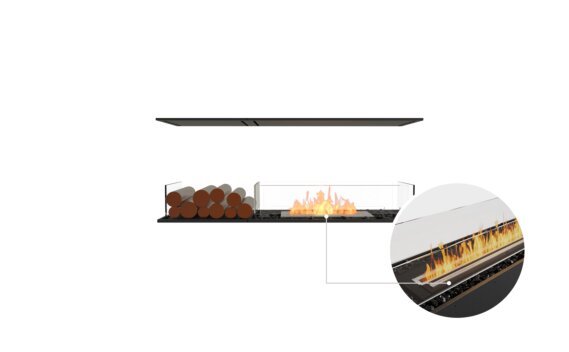

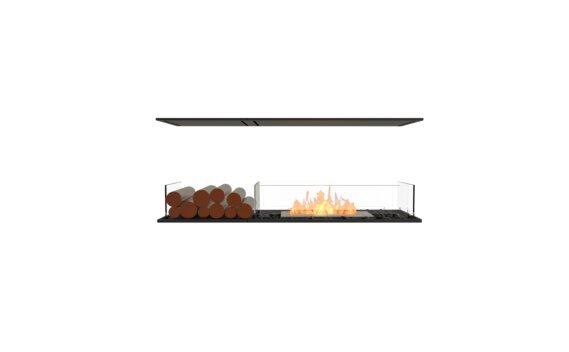

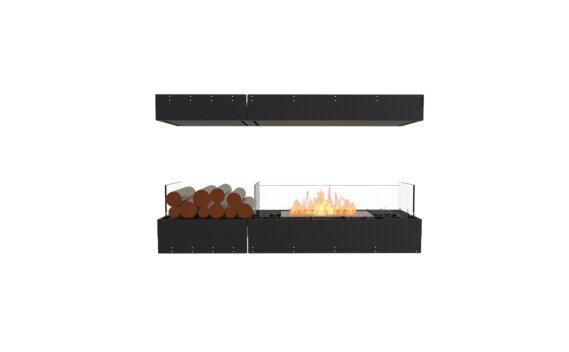

Flex 50IL.BX1 Island Fireplace Insert

Designed as a room divider with four open sides.

The zero-clearance Flex Island fireplace insert is designed as a room divider, with four open sides enabling the hypnotic flame to be viewed from the front, back, left and right sides. The UL Listed Flex Island models come with a base component that holds the burner and a top component that lines the bulkhead above.

With an EcoSmart Flex 50IL.BX1, you have design freedom with the choice of a Decorative Box on the left or right-hand side. Both designs are fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

The XL700 burner delivers a captivating linear flame. With a 7L capacity, this elongated ethanol burner has the power to heat up to 50m2, making it ideal for residential and smaller commercial/hospitality spaces.

Efficiency is a key feature of this burner, delivering up to 12 hours of heat generating flame from a single refill.

Product Configuration

Select Fuel Type*

Ethanol Ethanol Burner
Ethanol  - Studio Image by MAD Design Group

Select Burner Colour*

Stainless Steel
Stainless Steel  - Studio Image by MAD Design Group
Black
Black  - Studio Image by MAD Design Group

Included Accessories

  • Fire Lighter
  • Lighting Rod
  • Jerry Can 5L
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal

Key Features

Multi room

Indoor or outdoor multi room application. With four open sides, view the flame from multiple vantage points.

Base + bulkhead

Flex Island models come with a base component that holds the burner and a top component that lines the bulkhead above.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Self contained

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls.

Zero clearance

The zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Wind screen

Includes a translucent, toughened glass fire screen that provides an added layer of safety, peace of mind and comfort.

Clean burning

The fireplace inserts are fuelled by eco-friendly clean-burning e-NRG bioethanol, a renewable energy that emits no soot or smoke.

Technical Specifications

Construction

  • Weight 48.30kg [106lb]
  • Model Dimensions mm [in] W 1470mm [57.9in] D 354mm [13.9in] H 807mm [31.8in]
  • Viewing Area mm [in] W 1270mm [50in] D 340mm [13.4in] H 502mm [19.8in]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Fuel Efficiency

Volume Capacity
5 L
1.3 Gal
Heats on Average
40m2
431ft2
Minimal Room
80m3
2825ft3
Thermal Output
11430 BTU/h
3.4 kW 12 MJ/h
Burn Time
10 - 13 h
5 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

How to install a TV or AV equipment above an ethanol fireplace?

This design can be achieved as long as the TV is protected. You have 3 possible solutions:

Solution 1: The TV needs a non-combustible mantel/ledge to act as a heat shield

Solution 2: The TV needs to be recessed in a niche

Solution 3: The TV needs to sit back off the level of the flame

How to position your TV

Do I need to service my ethanol fireplace in any way?

Yes, normal maintenance and care is very important! Instructions are included in the Installation, Operating and Maintenance Manual supplied with your EcoSmart Fire product.

Do ethanol fireplaces smell?

All heating appliances have their own smell be it gas, wood or electric - ethanol fireplaces are no different. e-NRG ethanol fuel is made of fermented plants like sugarcane or corn and is essentially a liquid alcohol. To safely make “de-natured” and unfit for consumption, substances have been added. The burning of these substances may cause a slight smell upon initial lighting and when the flame is extinguished – similar to when you blow out a candle. e-NRG ethanol fuel is the only fuel recommended for your EcoSmart Fire ethanol fireplace. e-NRG ethanol fuel has the lowest odor and longest burn time on the market. The nice thing about using ethanol is that it’s not dry like gas or smokey like wood.

How long does it take to assemble?

There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you!

The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth.

How do I fill my ethanol fireplace?

With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy.

Step 1: Remove the bottle nozzle cap and carefully insert into the filling point

Step 2: Push and hold the green button. The nozzle will automatically stop filling once the reservoir is full.

Step 3: Replace the nozzle cap.

You can view a step-by-step filling video.

What maintenance is required for ethanol fireplaces?

Clean your EcoSmart Fire unit after you have used 50 liters [13.20 Gal.] of fuel or as soon as you notice black deposits on or near the burner of the ethanol fireplace. Black marks can be removed from the stone, solid surfaces or stainless steel with a mild abrasive washing product such as JIF or similar. It is recommended to test a small area first to ensure the cleaning product chosen is appropriate and will not mark or damage the surface. Burners can be washed as required in hot soapy water (even in your dishwasher) from time to time and the internal mechanics won’t deteriorate like some other brands as all internal parts are stainless steel.

What is bioethanol fuel?

Bioethanol (also known as methylated spirits or simply ethanol) is a form of renewable energy. It’s a clear, colourless liquid that’s commonly made from fermenting the sugar and starch components of plant by-products like sugarcane and grain crops.

Why use bioethanol?

Bioethanol, a renewable energy, is the cleanest and most efficient fuel on the market, which means there are no emissions and no soot or ash to clean up.

You May Also Like

Island
Flex 122IL.BX1 Island - Studio Image by EcoSmart Fire
Flex 122IL.BX1 Island - In-Situ Image by EcoSmart Fire
Flex 122IL.BX1 Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.
Flex 158IL Island - Studio Image by EcoSmart Fire
Flex 158IL Island - In-Situ Image by EcoSmart Fire
Flex 158IL Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.
Flex 18IL Island - Studio Image by EcoSmart Fire
Flex 18IL Island - In-Situ Image by EcoSmart Fire
Flex 18IL Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.
Flex 140IL.BX2 Island - Studio Image by EcoSmart Fire
Flex 140IL.BX2 Island - In-Situ Image by EcoSmart Fire
Flex 140IL.BX2 Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.

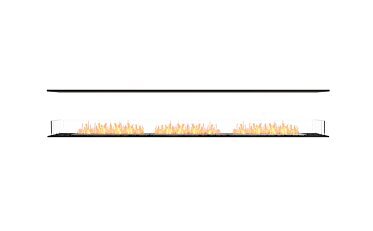

Flex 122IL Island - Studio Image by EcoSmart Fire
Flex 122IL Island - In-Situ Image by EcoSmart Fire
Flex 122IL Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.

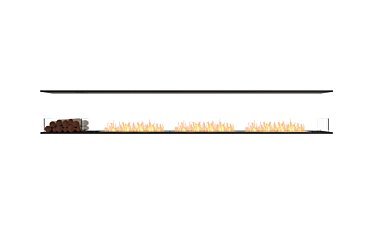

Flex 140IL.BX1 Island - Studio Image by EcoSmart Fire
