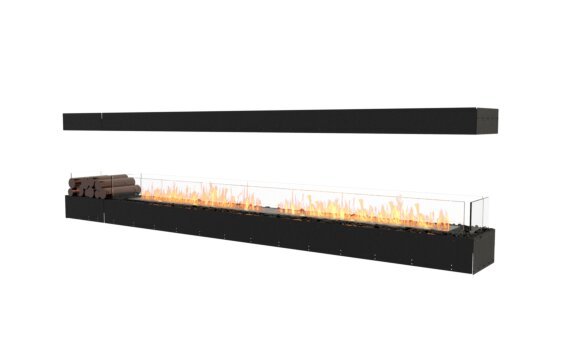

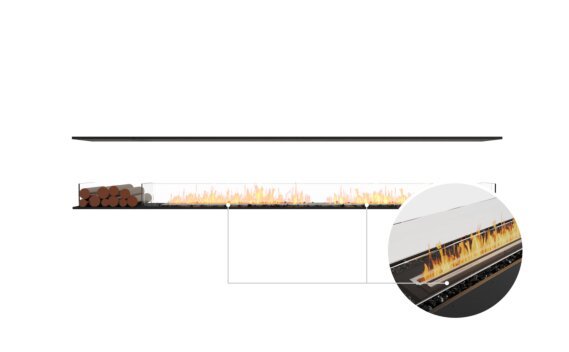

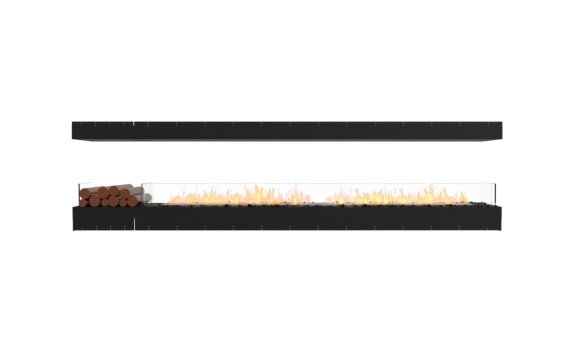

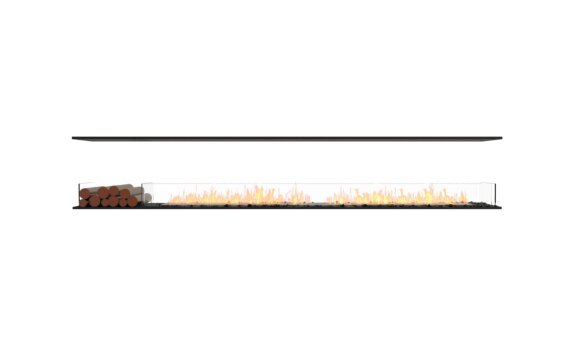

Flex 122IL.BX1 Island Fireplace Insert

Designed as a room divider with four open sides.

The zero-clearance Flex Island fireplace insert is designed as a room divider, with four open sides enabling the hypnotic flame to be viewed from the front, back, left and right sides. The UL Listed Flex Island models come with a base component that holds the burner and a top component that lines the bulkhead above.

The clean lines and 'all flame' configuration of the Flex 122IL.BX1 means the entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.

One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL1200 Burners. With an overall heating capacity of 130m2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.

Each burner holds 10L of fuel, and can deliver a stunning flame for up to 14 hours.

Product Configuration

Select Fuel Type*

Ethanol Ethanol Burner
Ethanol  - Studio Image by MAD Design Group

Select Burner Colour*

Stainless Steel
Stainless Steel  - Studio Image by MAD Design Group
Black
Black  - Studio Image by MAD Design Group

Included Accessories

  • Fire Lighter
  • Lighting Rod
  • Jerry Can 5L
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal

Key Features

Application

Indoor or outdoor multi room application. With three open side, view the flame from multiple vantage points.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative side box

Includes one decorative side box to fill with your chosen noncombustible accessory.

Optional log sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind screen

Included integrated windscreen sits flush behind frame.

Technical Specifications

Construction

  • Weight 131kg [289lb]
  • Model Dimensions mm [in] W 3310mm [130.3in] D 354mm [13.9in] H 807mm [31.8in]
  • Viewing Area mm [in] W 3100mm [122in] D 340mm [13.4in] H 502mm [19.8in]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Fuel Efficiency

Volume Capacity
10 L
2.6 Gal
Heats on Average
65m2
700ft2
Minimal Room
115m3
4061ft3
Thermal Output
15290 BTU/h
4.5 kW 17 MJ/h
Burn Time
9-14h
10 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

Are EcoSmart Fires easy to install?

EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.

Can I extinguish my ethanol fireplace before the fuel has burnt?

Yes, you can turn your EcoSmart Fire ethanol burner off at any given time, even if there is ethanol still left in the burner. It is recommended however, that you leave it to burn until it completely runs out. The shut off mechanism is there for security and safety for those times when you need to leave the house, as it is not safe to leave a fire unattended. You need to wait until your appliance cools to room temperature (60 minutes) before re-igniting, this is because hot vapours are a hazard and may cause a strong, initial ignition if the ethanol has not cooled long enough. This is also to ensure that the flame has been totally extinguished and that the appliance is safe to refuel if the amount of fuel in the burner at that time is insufficient for your next ignition / use.

How long does it take to assemble?

There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you!

The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth.

How do I clean my EcoSmart Fire ethanol burner?

Cleaning of the ethanol burner should be done only after you have used 50 litres of fuel or as soon as you notice a black residue forming around or on the burner. Before starting, make sure the burner is off, empty of ethanol, and at room temperature. Spray a multi-purpose cleaner on the surface of the burner and wipe with cloth, making sure to wipe in the direction of the grain. If material has fallen into the ethanol fireplace burner use a vacuum cleaner to remove debris through the burner opening. If your burner smells unusually strong after extensive use, remove the empty and room temperature burner from its surround and wash in hot, soapy water. Rinse thoroughly under running water and wait until the burner is completely dry before placing it back into its surround and reusing. View this video of the simple cleaning process here: https://youtu.be/VqHg9mXOc0U

Note: Stainless steel will rust or corrode over time if contamination or debris is not cleaned or removed immediately. When not in use, we recommend that you protect your ethanol fireplace from water damage or corrosion with a protective cover and the regular use of the burner lid included with your model.

Can EcoSmart Fires be installed everywhere?

Almost everywhere! EcoSmart Fires cannot be installed into small rooms that are less than our minimum room size which is burner specific. For all other installations, you must comply with our compulsory clearances and installation instructions. Approval from building authorities may be required prior to installation in your area. Please make sure you contact appropriate parties before installing your EcoSmart Fire.

What is bioethanol fuel?

Bioethanol (also known as methylated spirits or simply ethanol) is a form of renewable energy. It’s a clear, colourless liquid that’s commonly made from fermenting the sugar and starch components of plant by-products like sugarcane and grain crops.

How long will my ethanol fireplace burn?

Burn times for our ethanol fireplaces vay based on flame size and fuel capacity of the burner. EcoSmart Fire’s ethanol fireplaces will burn between 8-13 hours when full.

How does an ethanol fireplace work?

EcoSmart Fire’s ethanol fireplaces are self-contained, burning bioethanol fuel that is housed within the stainless steel container. A flame regulator controls and stabilizes the flame. With a designated filling area, and easy shut off mechanism, you can ignite the flame and turn it off in a matter of seconds. View this quick demonstration video to help illustrate the process.

You May Also Like

Island

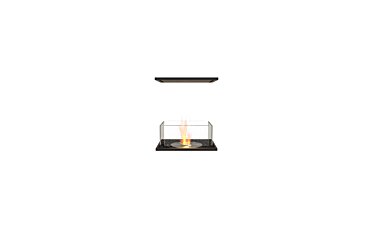

Flex 18IL Island - Studio Image by EcoSmart Fire
Flex 18IL Island - In-Situ Image by EcoSmart Fire
Flex 18IL Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.
Flex 50IL Island - Studio Image by EcoSmart Fire
Flex 50IL Island - In-Situ Image by EcoSmart Fire
Flex 50IL Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.

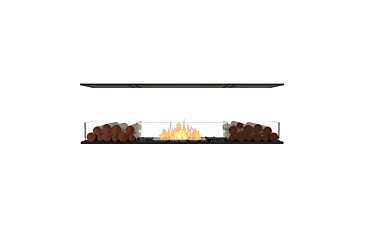

Flex 68IL.BX2 Island - Studio Image by EcoSmart Fire
Flex 68IL.BX2 Island - In-Situ Image by EcoSmart Fire
Flex 68IL.BX2 Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.
Flex 86IL Island - Studio Image by EcoSmart Fire
Flex 86IL Island - In-Situ Image by EcoSmart Fire
Flex 86IL Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.
Flex 104IL Island - Studio Image by EcoSmart Fire
Flex 104IL Island - In-Situ Image by EcoSmart Fire
Flex 104IL Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.
Flex 68IL Island - Studio Image by EcoSmart Fire
Flex 68IL Island - In-Situ Image by EcoSmart Fire
Flex 68IL Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.
Flex 60IL.BX1 Island - Studio Image by EcoSmart Fire
Flex 60IL.BX1 Island - In-Situ Image by EcoSmart Fire
Flex 60IL.BX1 Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.

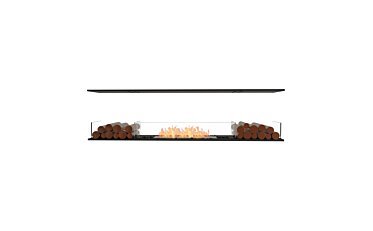

Flex 78IL.BX2 Island - Studio Image by EcoSmart Fire
Flex 78IL.BX2 Island - In-Situ Image by EcoSmart Fire
Flex 78IL.BX2 Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.
Flex 50IL.BX1 Island - Studio Image by EcoSmart Fire
Flex 50IL.BX1 Island - In-Situ Image by EcoSmart Fire
Flex 50IL.BX1 Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.
Flex 140IL.BX2 Island - Studio Image by EcoSmart Fire
Flex 140IL.BX2 Island - In-Situ Image by EcoSmart Fire
Flex 140IL.BX2 Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.

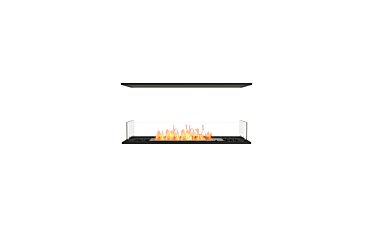

Flex 42IL Island - Studio Image by EcoSmart Fire
Flex 42IL Island - In-Situ Image by EcoSmart Fire
Flex 42IL Island Fireplace Insert
EcoSmart Fire The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.

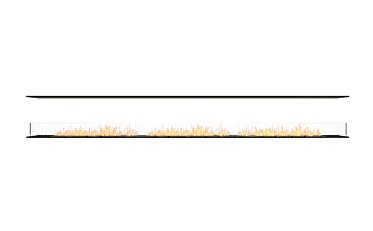

Flex 158IL Island - Studio Image by EcoSmart Fire

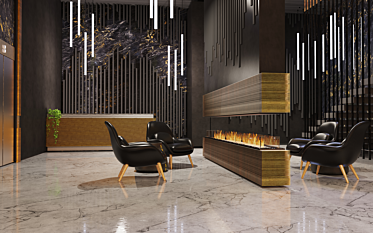

Flex 158IL Island - In-Situ Image by EcoSmart Fire
